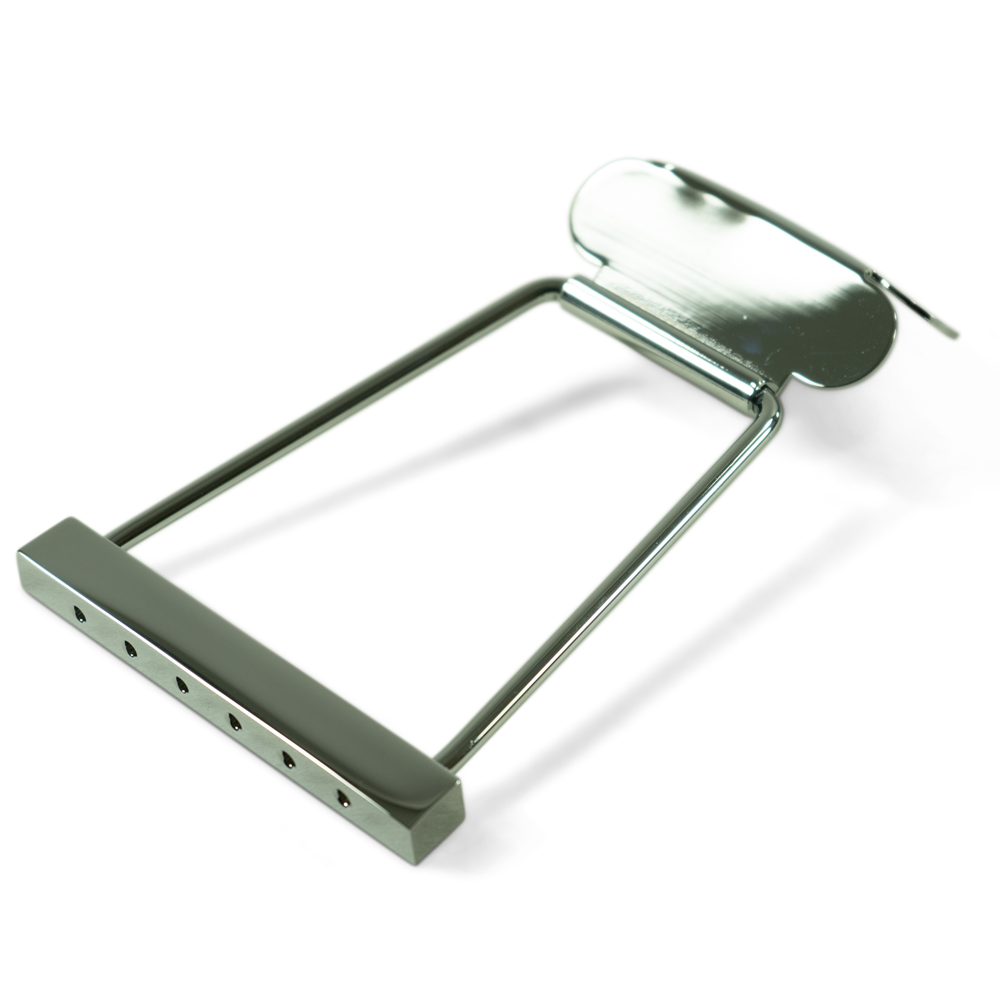

Kluson #7 Trapeze Tailpiece

Description

• Tailpiece Length (without hinge) = 3 35/64″ or 89.93mm
• Length of Bar = 2 15/16″ or 74.59mm
• Width of Bar = 13/32″ or 10.37mm
• String Spacing at Bar = 1 61/64″ or 49.78mm
• Mounting area of hinge length = 2 7/32″ or 56.20mm
• Mounting area of hinge width = 1 13/32″ or 35.93mm
• Mounting hole location bottom center = 17/64″ or 6.62mm from bottom edge
• Two mounting hole locations from side edges = 11/32″ or 8.59mm
• Two mounting hole locations apart from each other = 1 33/64″ or 38.37mm
